SIMPLE_WIEN_BRIDGE_OSCILLATOR

Published:2009/7/10 2:35:00 Author:May | From:SeekIC

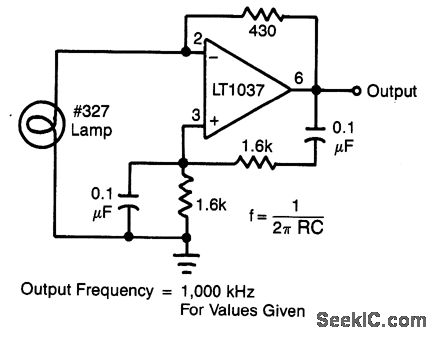

In this circuit, the Wien-bridge network provides phase shift, and the lamp regulates the amplitude of the oscillations. The smooth, limiting nature of the lamp's operation, in combination with its simplicity, gives good results. Harmonic distortion is below 0.3%
