SIMPLE_VARIABLE_FREQUENCY_OSCILLATOR

Published:2009/6/22 23:55:00 Author:May | From:SeekIC

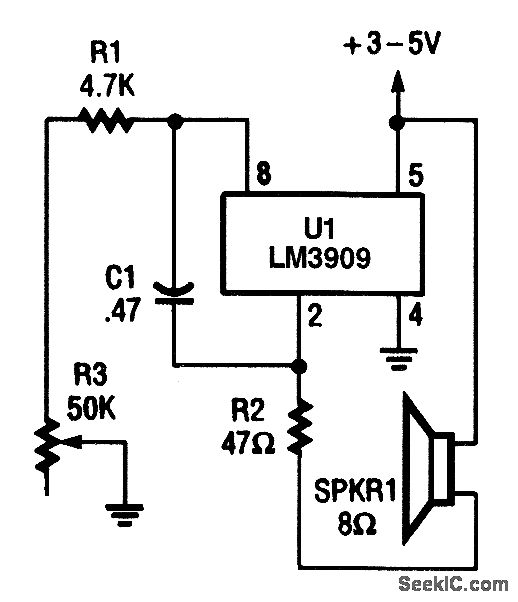

In this variable audio frequency oscillator, the output of U1 at pin 2 is used to drive an 8-Ω speaker through R2 (which functions as a current-limiter).
