SIMPLE_THIRD_OVERTONE_OSCILLATOR

Published:2009/7/10 2:18:00 Author:May | From:SeekIC

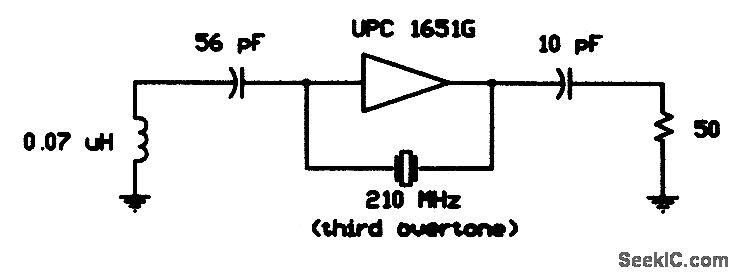

Using a 210-MHz third overtone crystal，this circuit operates directly at the crystal frequency，with210-MHz output and no multiplier stages.
