SIMPLE_RF_TEST_OSCILLATOR

Published:2009/6/24 4:13:00 Author:May | From:SeekIC

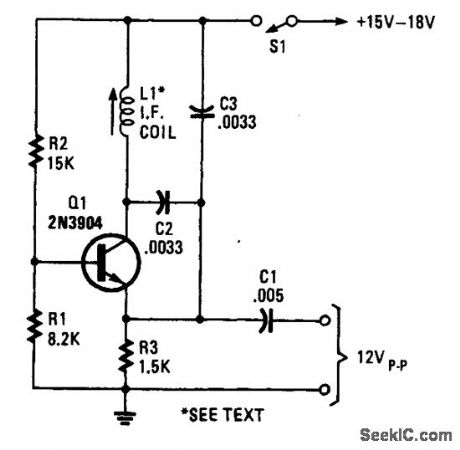

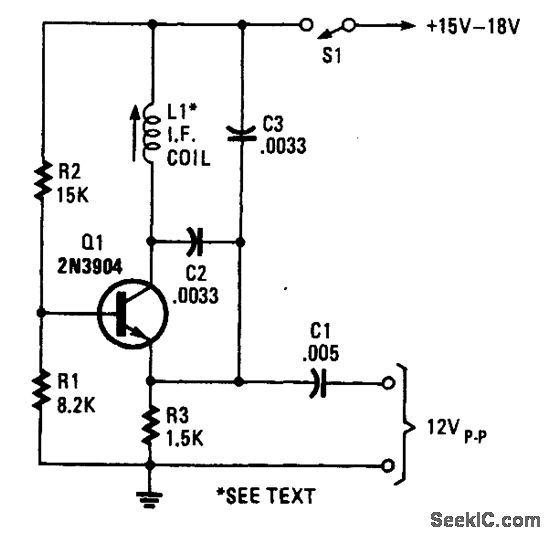

A simple oscillator for IF alignment (455 kHz) can prove useful in field testing or where a stan-dard signal generator is available. L1 should res-onate at the desired output frequency with the series combination of C2 and C3.
