SCS_RLC_OSCILLATOR

Published:2009/7/19 21:34:00 Author:Jessie | From:SeekIC

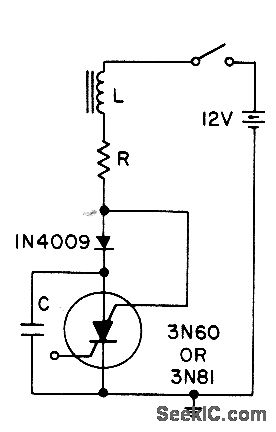

Positive transient, such as closing of switch, charges C through L. When current reverses, diode blocks and triggers scs. When capacitor discharges, scs turns off and C charges to repeat cycle.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 434.
