RELAXATION_OSCILLATOR

Published:2009/7/10 3:23:00 Author:May | From:SeekIC

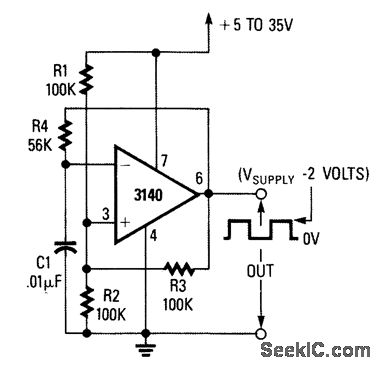

This oscillator runs at about 150 Hz, but C1 and/or R4 can be proportionately changed to alter this frequency. Rise and fall times are 12 and 7 μs, respectively.
