PREFERRED_SERIES_TRIGGERED_BLOCKING_OSCILLATOR

Published:2009/7/19 21:48:00 Author:Jessie | From:SeekIC

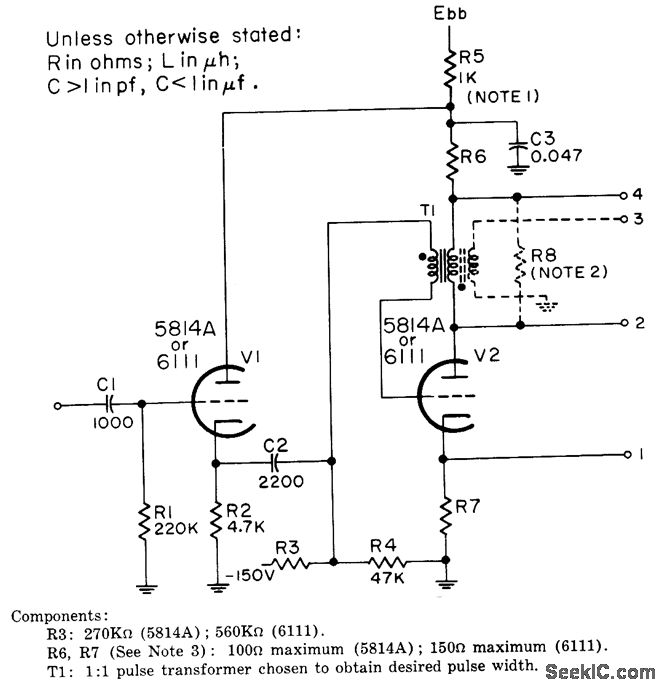

Responds to more slowly rising trigger than parallel-triggered version. Gathode follower V1 is included to provide required low driving impedance and minimize reaction of oscillator on trigger source. Designed for repetition rates up to 2,000 pps. Four terminals give choice of positive or negative output from positive input. Plate voltage is 300 V for 5814A and 150 V for 6111.-NBS, Handbook Preferred Circuits, Navy Aeronautical Electronic Equipment, Vol.I, Electron Tube Circuits, 1963, PC 49, p 49-2.
