PRECISION_LF_OSCILLATOR

Published:2009/6/24 21:07:00 Author:Jessie | From:SeekIC

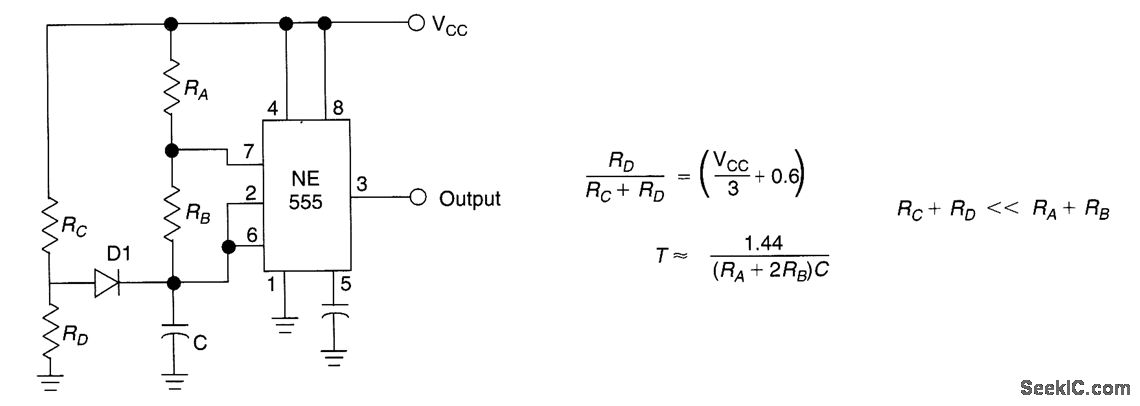

Using R1, R7, and D1 to preset C1 to one third of the supply voltage, this circuit avoids a longer first cycle period than subsequent cycles.
