Norton_square_wave_oscillator

Published:2009/7/17 4:26:00 Author:Jessie | From:SeekIC

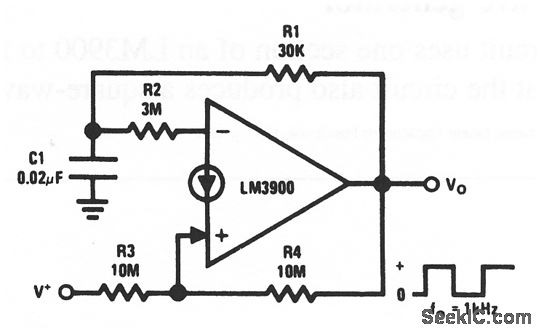

This circuit uses one section of an LM3900 to form a square-wave oscillator (with a 1-kHz output using the values shown). National Semiconductor Linear Applications Handbook 1991 p 232
