LOGIC_GATE_SINE_WAVE_OSCILLATOR

Published:2009/6/23 1:34:00 Author:May | From:SeekIC

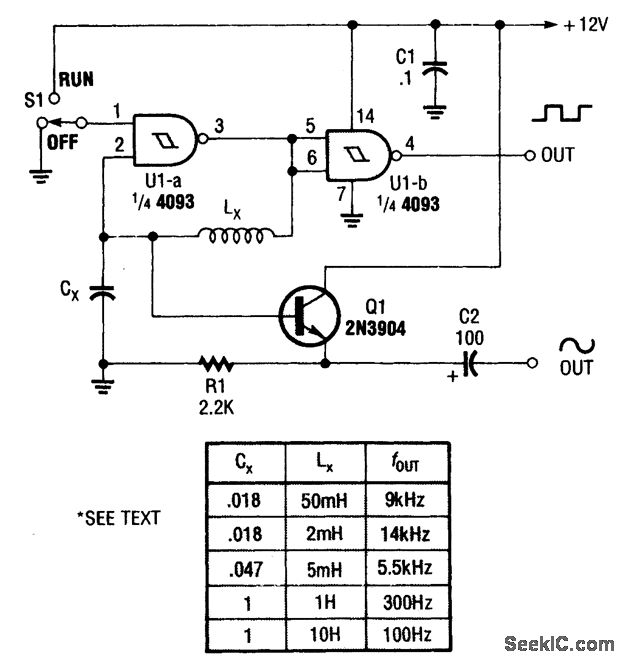

An inductor and capacitor are used here as frequency-determining elements in an LC oscillator.
