LIGHT_CONTROLLED_OSCILLATOR

Published:2009/6/17 2:42:00 Author:May | From:SeekIC

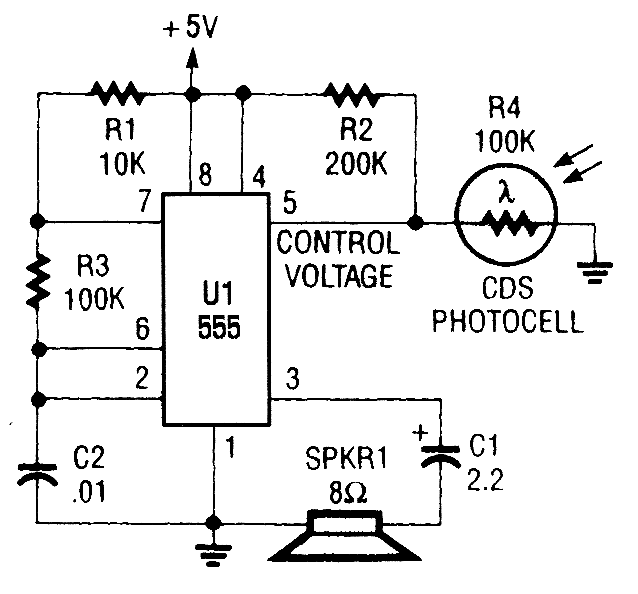

This circuit can be used as a light detector and possibly as an aid for the visually handi-capped. The frequency of the oscillator is deter-mined by the amount of illumination striking LDR4.
