JFET_PIERCE_CRYSTAL_OSCILLATOR__

Published:2009/6/25 3:04:00 Author:May | From:SeekIC

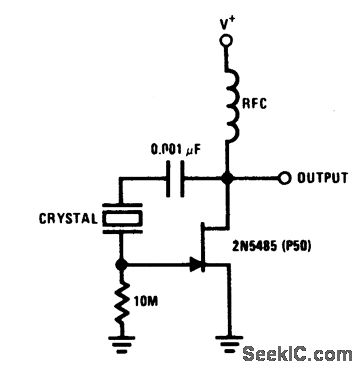

Circuit Notes TheJFET Pierce crystal oscillator allowsa wide frequency range of crystals to be usedwithout circuit modification，Since the JFETgate does not load the crystal， good Q IS maln－tained，thus lnsurlng good frequency stability．
