JFET_PIERCE_CRYSTAL

Published:2009/7/2 7:27:00 Author:May | From:SeekIC

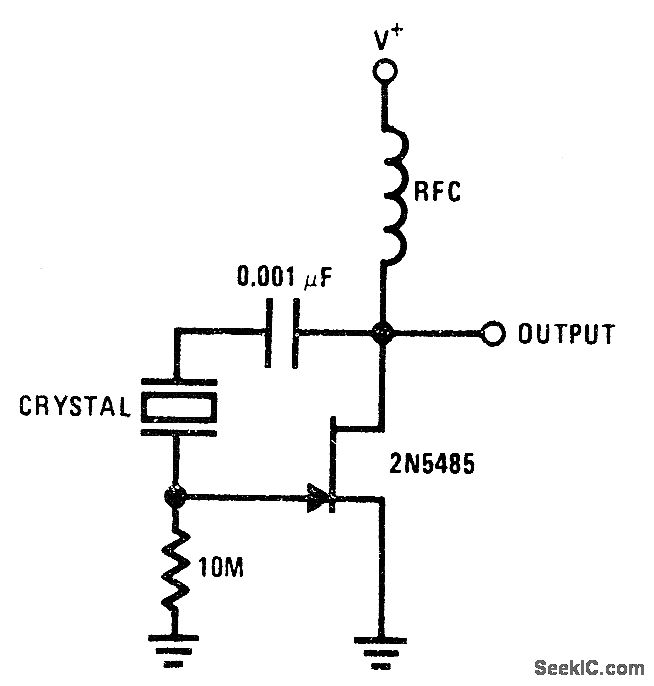

Basic JFET oscillatorcircuit permits use of wide frequency range of crystals. High Q is maintained because JFET gate does not load crystal, thereby ensuring good frequency stability．- FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-26-6-36.
