INTERNATIONAL_CRYSTAL_OF_1_HI_OSCILLATOR

Published:2009/6/25 2:55:00 Author:May | From:SeekIC

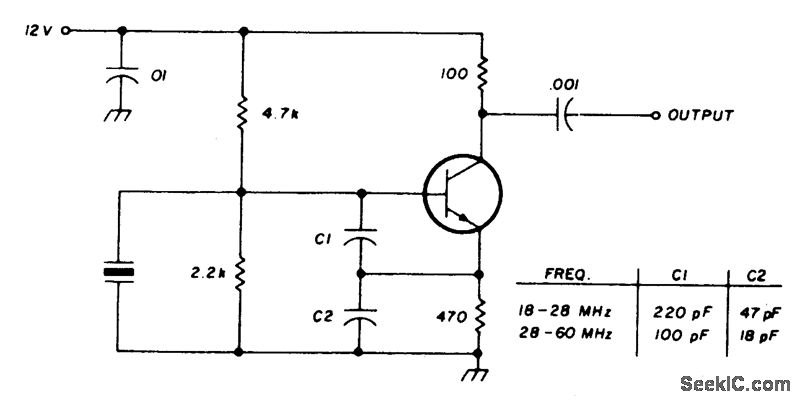

Circuit NotesInternational Crystal OF-1 HI oscillator circuit for third-overtone crystals. The circuit does not requlre inductors．
