HEX_BUFFER_CRYSTAL_OSCILLATOR

Published:2009/6/15 21:09:00 Author:May | From:SeekIC

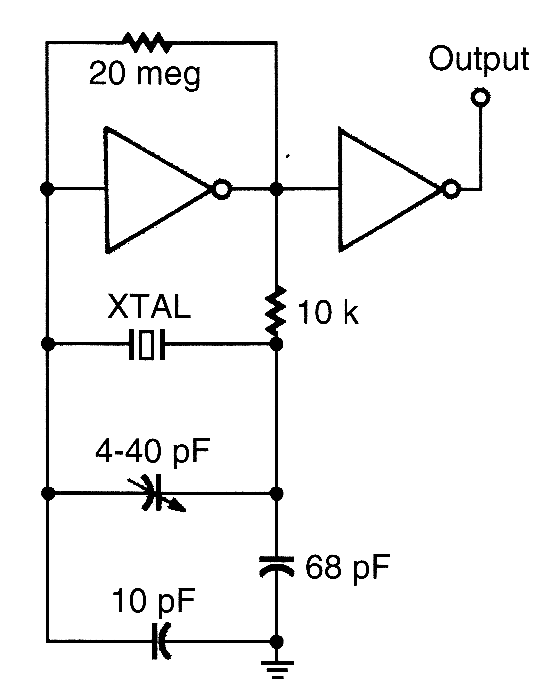

A 4049 single section acts as a crystal oscilla-tor, driving another section as a buffer, leaving four sections for other use. Use a 32- or 20-pF parallel resonant fundamental crystal.
