FREQUENCY_DOUBLER_AND_CRYSTAL_OSCILLATOR

Published:2009/6/23 1:56:00 Author:May | From:SeekIC

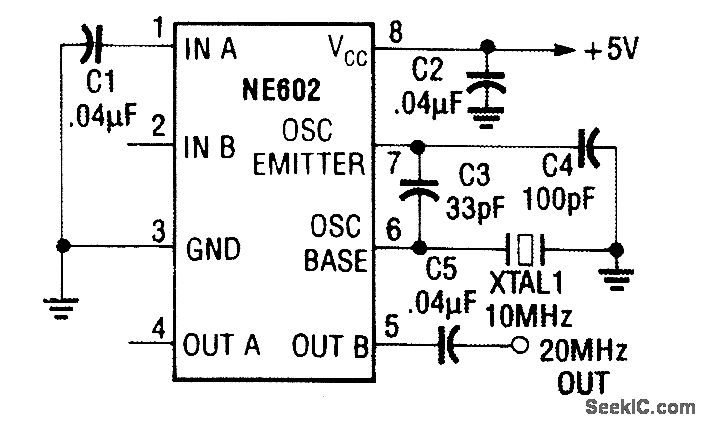

This frequency doubler produces a sine wave at twice the frequency of XTALl. Notice that the output is taken only from OUT B (pin 5), while OUT A (pin 4) is left open.
