FIFTH_OVERTONE_OSCILLATOR

Published:2009/6/24 23:06:00 Author:Jessie | From:SeekIC

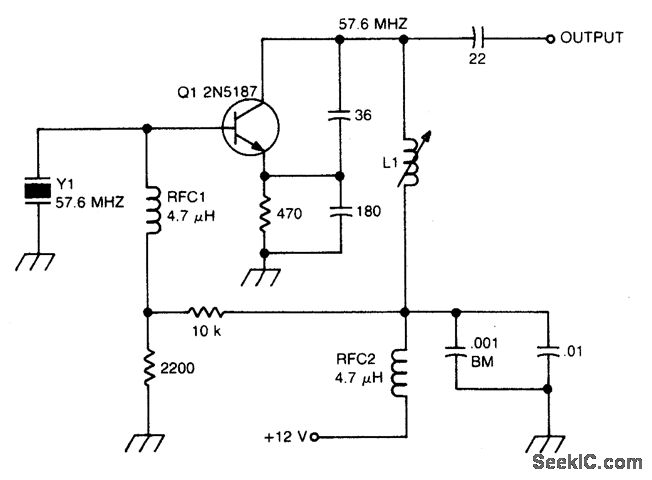

Circuit NotesThis circuit isolates the crystal from the dc base supply with an rf choke for better starting characteristics.
