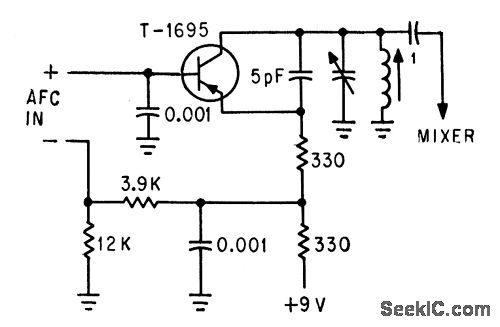

EMITIER_CURRENT_CONTROL_40_MC_AFC_OSCILLATOR

Published:2009/7/15 3:34:00 Author:Jessie | From:SeekIC

Error signal, usually derived from external discriminator, is applied in series with base bias network to give sensitivity of about 1.5 Mc per v and nearly straight voltage-frequency characteristic.-T. P. Prouty, Using Varactors to Extend Frequency-Control Range, Electronics,36:45, p 48-49.
