CRYSTAL_OSCILLATOR_WITH_ADJUSTABLE_FREQUENCY

Published:2009/6/23 1:53:00 Author:May | From:SeekIC

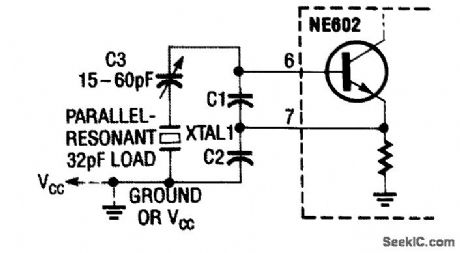

In this crystal oscillator circuit, C3 adjusts the frequency of the oscillator for exact netting. The crystal is a fundamental type. C1= 100 pF and C2 = 1000 pF are typicd.
