CRYSTAL_OSCILLATOR_I

Published:2009/6/23 1:49:00 Author:Jessie | From:SeekIC

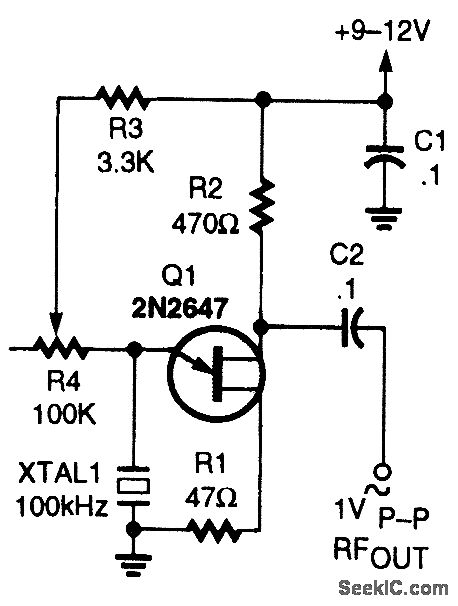

In this circuit, series-resonant crystal XTAL1 is used as a frequency-determining element.XTAL1 is between 0.1 to 10 MHz.
