COLPITTS_1_to_20_MHz_CRYSTAL_OSCILLATOR

Published:2009/7/10 2:21:00 Author:May | From:SeekIC

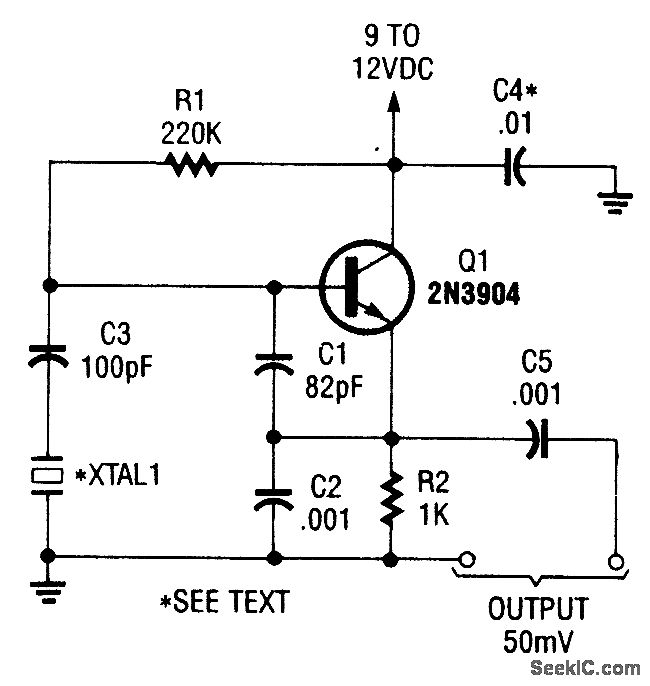

This is a simple Colpitts crystal oscillator for 1 to 20 MHz, can be easily made from junk-box parts(provided that a crystal is handy).
