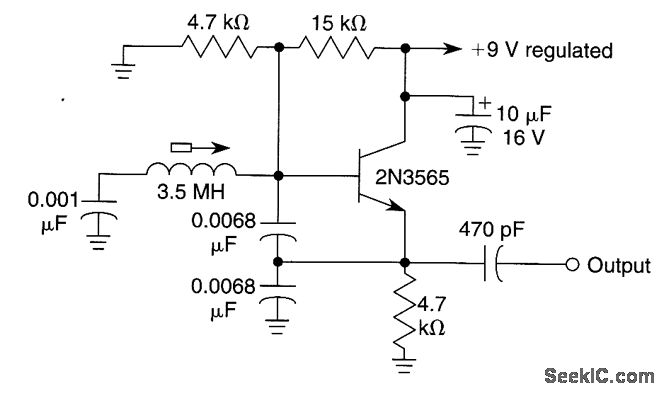

CLAPP_OSCILLATOR_FOR_100_kHz

Published:2009/6/23 2:32:00 Author:May | From:SeekIC

This Colpitts oscillator is very stable and usable where good stability is needed, but crystal control is not desirable. It is capable of 1 part in 104 to 105 with good-quality components.
