CB_CRYSTAL_OSCILLATOR

Published:2009/7/19 23:24:00 Author:Jessie | From:SeekIC

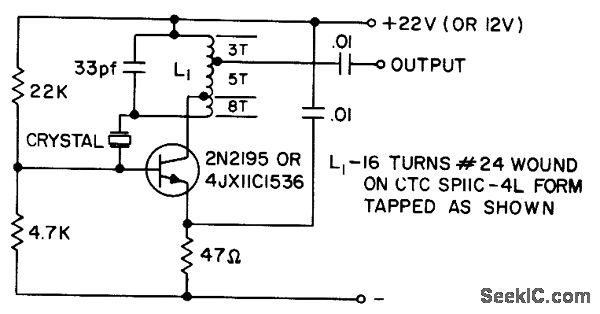

Uses low-cost crystal having high series resistance, up to 30 ohms. Provides adequate output to supply most master oscillator-power amplifier applications. Output tap is arranged to match directly a companion 2N2195 grounded-base amplifier. Crystal is 3rd overtone type.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 211.
