CASCADE_TUNNEL_DIODE

Published:2009/7/19 22:16:00 Author:Jessie | From:SeekIC

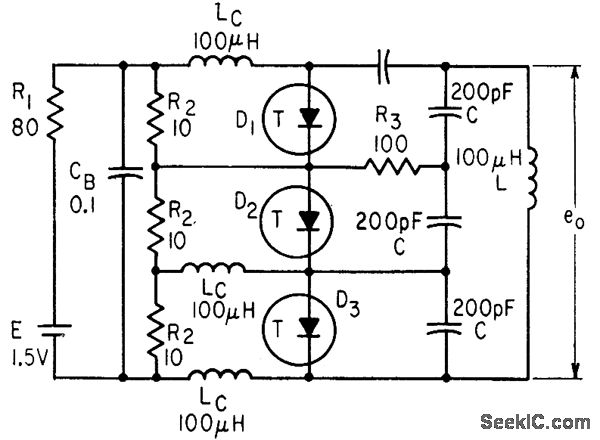

Voltage drops across resistors R2 serve as individual voltage sources in series for cascaded diodes that give three times sine-wave output voltage of single relaxation oscillator circuit.-Wen-Hsiung Ko, Designing Tunnel Diode Oscillators, Electronics, 34:6, p 68-72.
