BASIC_OSCILLATOR_CIRCUITS

Published:2009/6/24 21:12:00 Author:Jessie | From:SeekIC

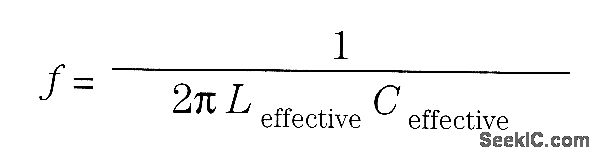

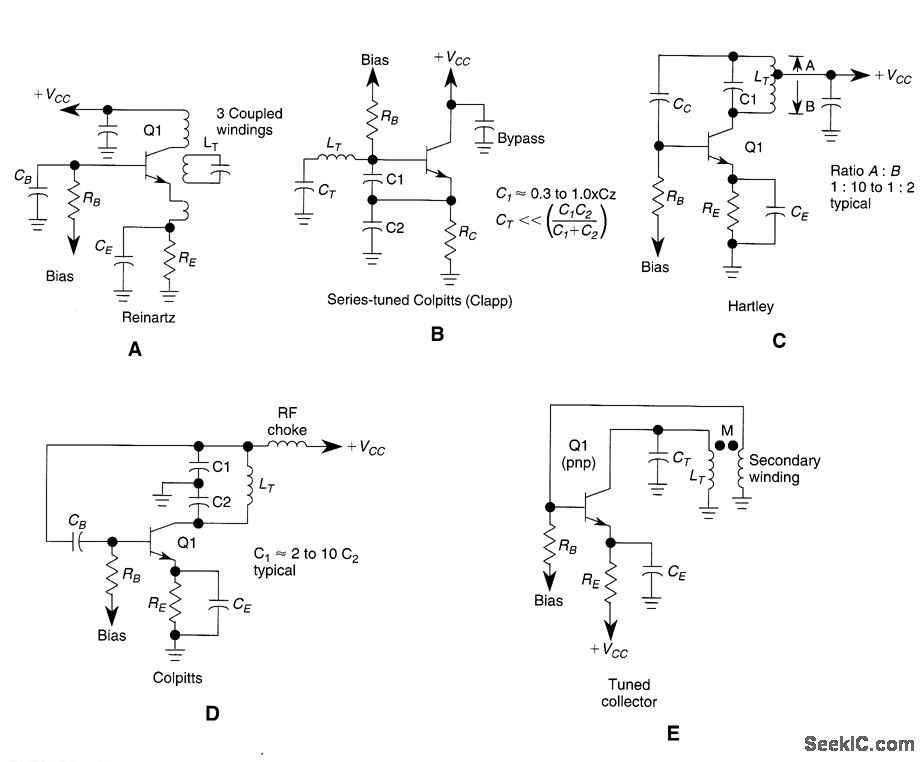

Five basic types of LC oscillators are shown. The frequency can be changed by using the formula:where Leffective =equivalent inductance Ceffective =equivalent capacitance
