Astable/Monostable oscillator using 555 IC

Published:2012/9/17 21:37:00 Author:Ecco | Keyword: Astable/Monostable oscillator , 555 IC | From:SeekIC

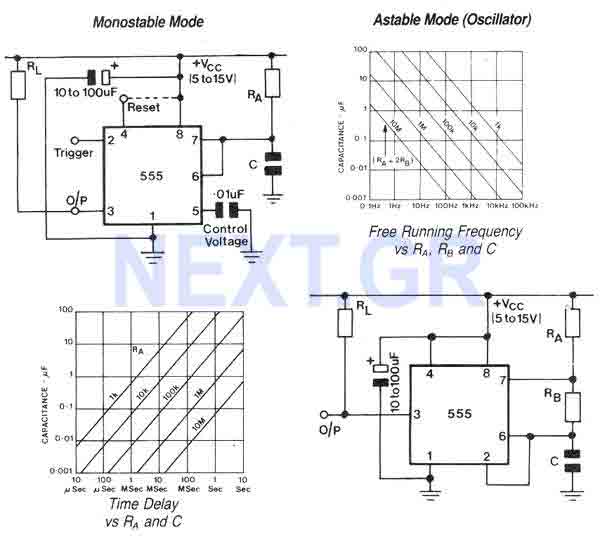

The 555 is a highly stable device for generating accurate time delays or oscillation. Aditional terminals are provided for triggering or resetting if desired. In the time delay (monostable) modeof operation the time is precisely controlled by one extrernal resistor and one capacitor. For stable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor.
