ANEMOVANE_AUDIO_OSCILLATOR

Published:2009/7/19 22:07:00 Author:Jessie | From:SeekIC

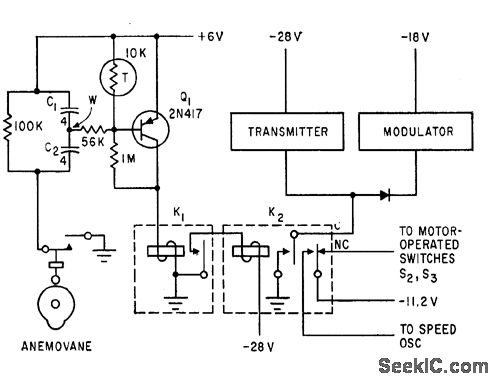

Used for telemetering wind velocity. Cam switch closes for each mile of wind that passes the anemometer cups, applying voltage to C1 and C2 in series and making Q1 conduct and pull in K1. This energizes velocity audio oscillator of telemetry system.-R. Beaulieu and G. Neal, Wind Velocity Telemetering System, Electronics, 33:29, p 68-70.
