7_MHz

Published:2009/7/2 9:12:00 Author:May | From:SeekIC

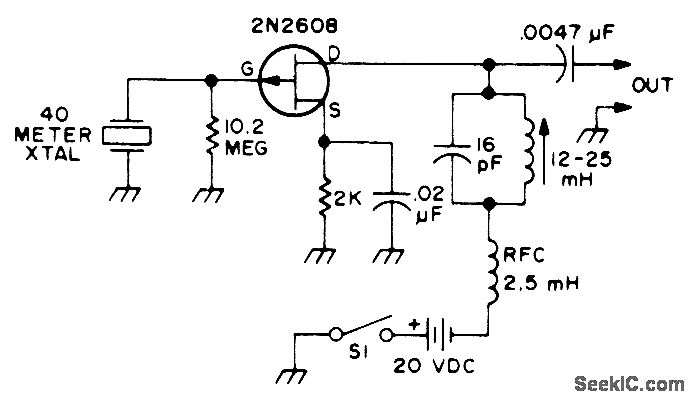

Uses single Siliconix 2N2608 FET. Keep leads short. Coil can be air-wound or permeability-tuned. If tuning capacitor is variable, coil value can be fixed. RF output level depends on circuit voltages and on activity of crystal used.-Q & A, 73 Magazine, April 1977, p 165.
