50_1000_kHz

Published:2009/7/6 0:36:00 Author:May | From:SeekIC

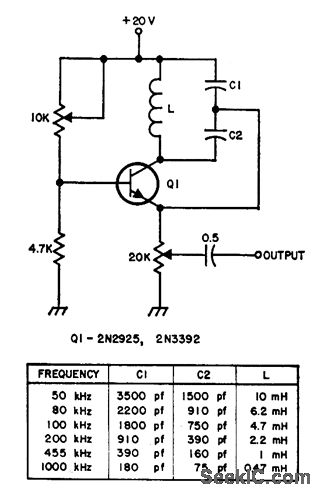

Simple single-transistor circuit provides extremely stable beat-frequency oscillator for which frequency can be changed by using tank-circuit components listed in table.-Circuits, 73 Magazine, Feb. 1974, p 101.
