48_MHz

Published:2009/7/2 9:12:00 Author:May | From:SeekIC

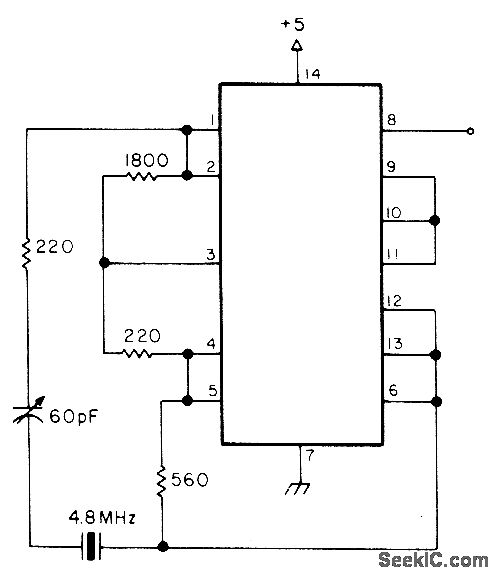

Uses all four sections of 7400 quad dual-input NAND gate to give 4.8 MHz output at pin 8, as harmonic-rich square wave. Can cause severe television interference during testing. Article gives five other crystal oscillator circults using same IC.-A. MacLean, How Do You Use ICs?, 73 Magazine, Oct. 1976, p 38-41.
