45MHz FET oscillator circuit

Published:2011/11/28 0:57:00 Author:Ecco | Keyword: 45MHz , FET oscillator | From:SeekIC

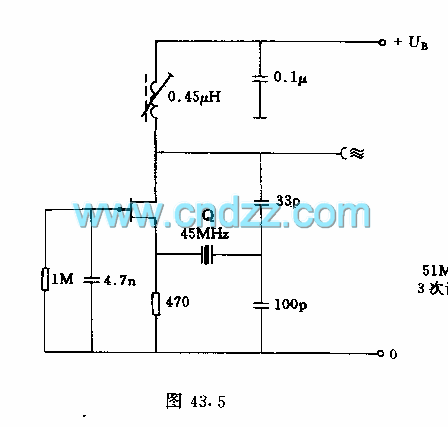

The circuit's quartz crystal is between the source and drain of field effect transistor. The operating point is determined by the source resistor. Inductor and capacitor form a series resonant circuit.
