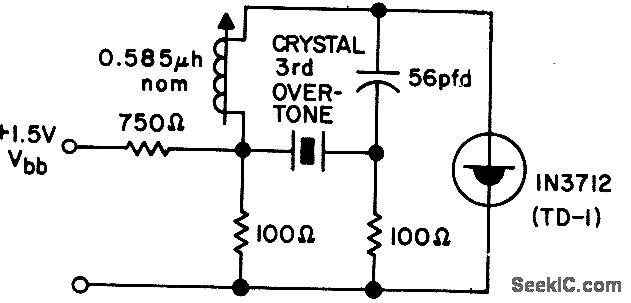

27255_MC_TUNNEL_DIODE_CRYSTAL_OSCILLATOR

Published:2009/7/19 21:56:00 Author:Jessie | From:SeekIC

Operates within tolerance of quartz crystal from -55 to + 85℃ and bias range of 110 to 150 mv for Citizens Band service. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 353.
