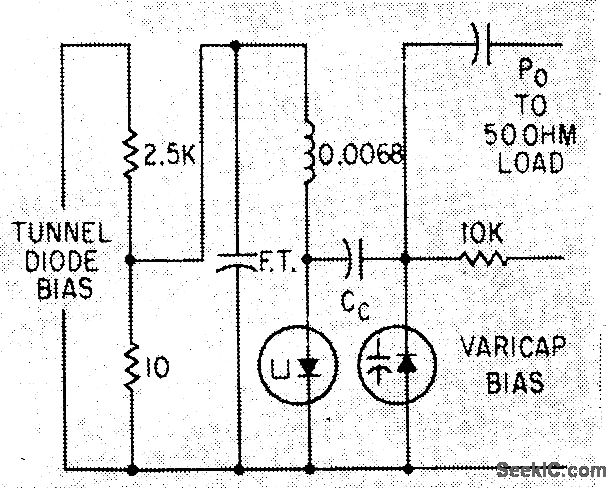

200_400_Mc_VARICAP_TUNED_OSCILLATOR_

Published:2009/7/19 23:15:00 Author:Jessie | From:SeekIC

Tuning range is achieved by adjusting Voricap bias voltage from 0.4 to 60 V.-E. Gottlieb and J. Giorgis, Tunnel Diodes-Using Them as Sinusoidal Generators, Electronics, 36:24, p 36-42.
