1_20_MHz_FUNDAMENTAL_CRYSTAL

Published:2009/7/2 7:02:00 Author:May | From:SeekIC

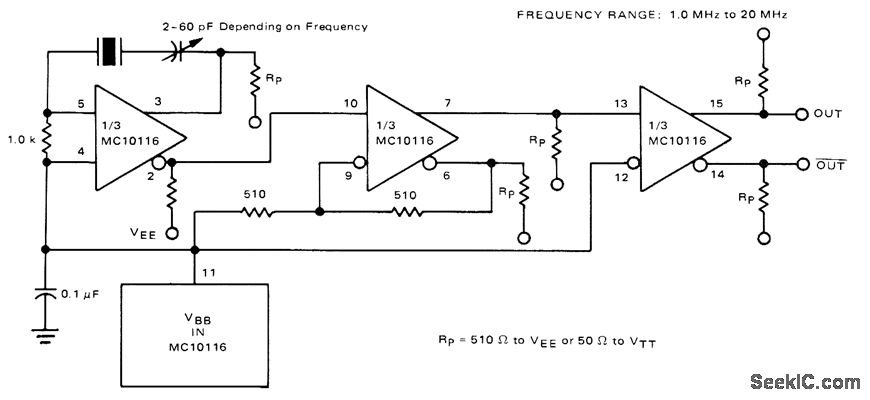

Oscillator requires no resonant tank circuit for frequencies below 20 MHz. Use of noninverting output makes oscillator section of Motorola MC10116 IC function simply as amplifier. Second section is connected as Schmitt trigger to improve signal waveform. Third section is buffer providing complementary outputs.-B. Blood, IC Crystal Controlled Oscillators, Motorola, Phoenix, AZ, 1977, AN-417B, p 4.
