10_kHz_OSCILLATOR

Published:2009/7/5 22:20:00 Author:May | From:SeekIC

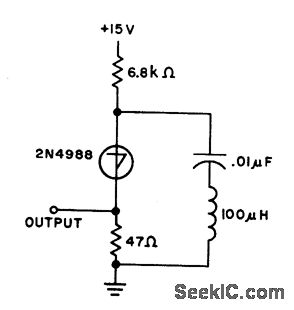

The capacitor charges until switching vol-tage is reached. When SUS switches on, the inductor causes current to ring. When the cur-rent thru SUS drops below the holding current, the device turns off and the cycle repeats.
