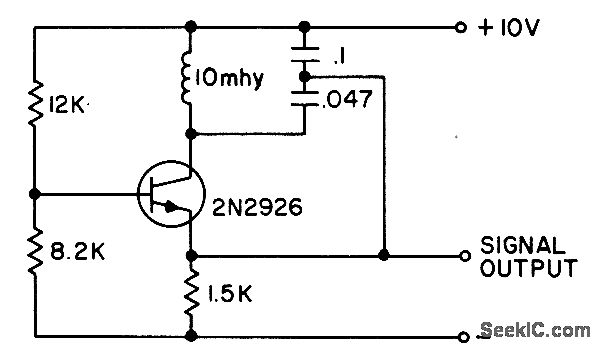

10_KC_SINGLE_TRANSISTOR_COLPITTS

Published:2009/7/19 22:32:00 Author:Jessie | From:SeekIC

Total temperature drift rate is only 0.035%/℃, determined by coil core material. For higher frequency stability, frequency-determining network should be buffered from amplifier. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 210.
