Opposite_polarity_magnitude_comparator

Published:2009/7/24 4:47:00 Author:Jessie | From:SeekIC

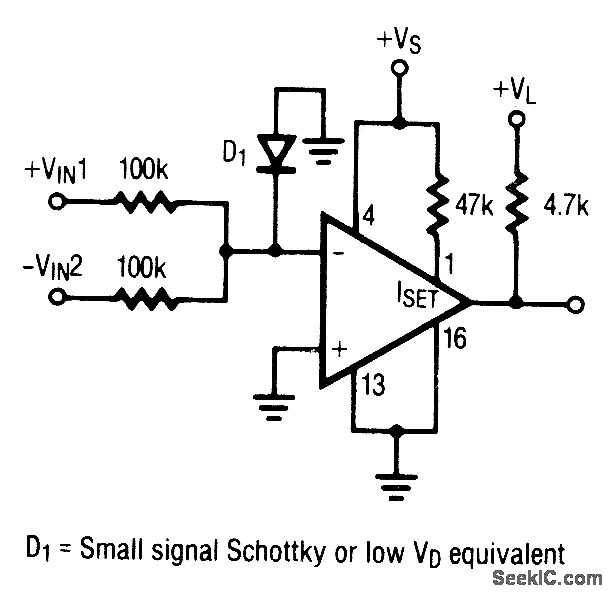

Pig. 15-28 This circuit is similar to that of Fig. 15-22, but it uses only one section of an LP165/365 and it requires a single supply. Figures 15-24B and 15-24C show the pin connections and electrical characteristics, respectively. Raytheon Linear Integrated circuits 1989, p. 5-40.
