Numerical control triangle wave-square wave generator circuit

Published:2011/6/27 2:51:00 Author:TaoXi | Keyword: Numerical control, triangle wave, square wave, generator circuit | From:SeekIC

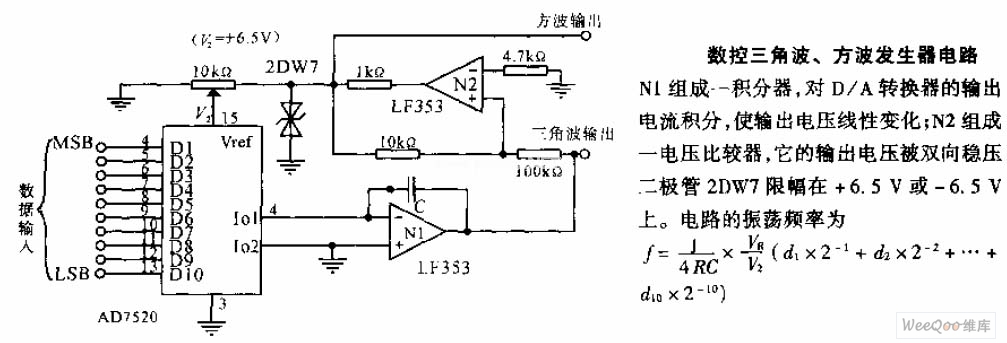

Numerical control triangle wave-square wave generator circuit: the integrator is composed of the N1, it integrates the output current of the D/A converter to change the output voltage linearly; the voltage comparator is composed of the N2, its output voltage is limited by the two-way voltage diode 2DW7from +6.5Vto -6.5V.
