AUDIO FREQUENCY DIGITAL NOISE GENERATOR

Published:2012/9/5 21:03:00 Author:Ecco | Keyword: AUDIO , FREQUENCY , DIGITAL , NOISE GENERATOR | From:SeekIC

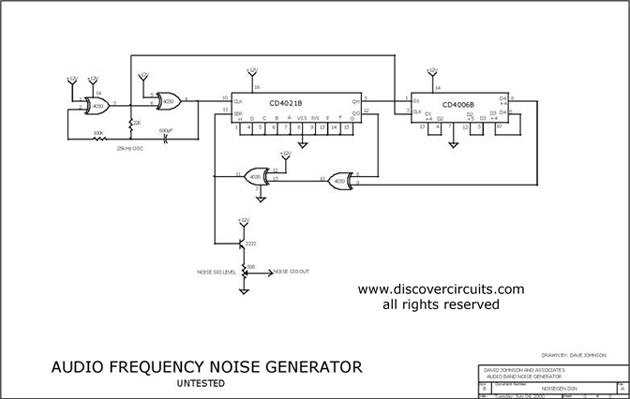

When you need to test an audio circuit with broadband noise, this circuit works great. It uses just three inexpensive C-MOS ICs that generate a series of output pulses whose widths vary randomly. I included a level control pot. Source: discovercircuits
