Narrow pulse generator circuit ( Figure 1.5 )

Published:2011/11/22 20:24:00 Author:Ecco | Keyword: Narrow pulse generator | From:SeekIC



Narrow pulse generator circuit ( Figure 1.5 )
Narrow pulse generator circuit ( Figure 1.5 )

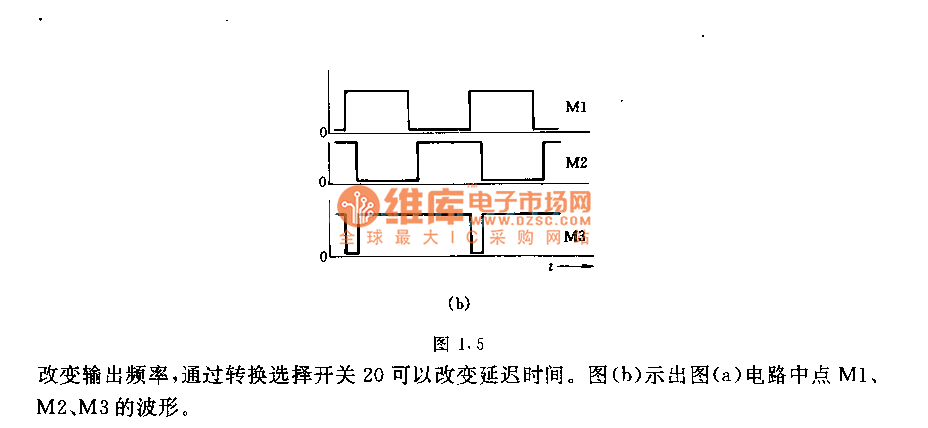

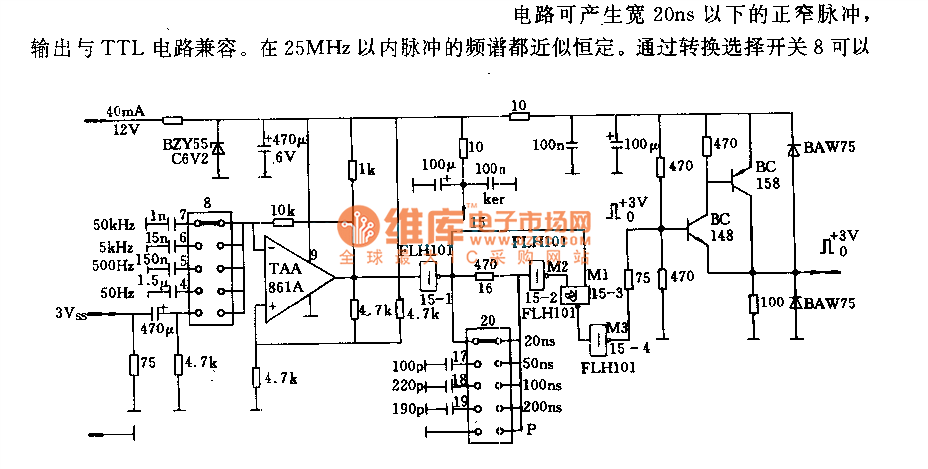

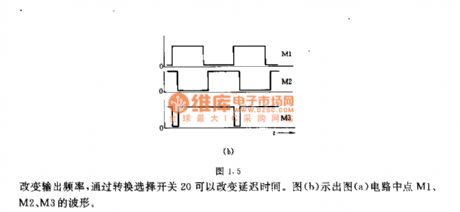

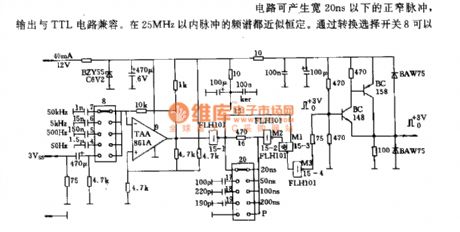

The circuit can produce a narrow pulse which is below 20ns, and the output is compatible with TTL circuit. The frequency spectrum less than 25MHz is approximately constant. Conversion selector switch 8 can change the output frequency, and the conversion selector switch 20 can change the delay time. Figure b shows the waveform diagram of M1, M2, M3 in Figure a.
