NEGATIVE_PULSE_STRETCHER

Published:2009/7/16 21:59:00 Author:Jessie | From:SeekIC

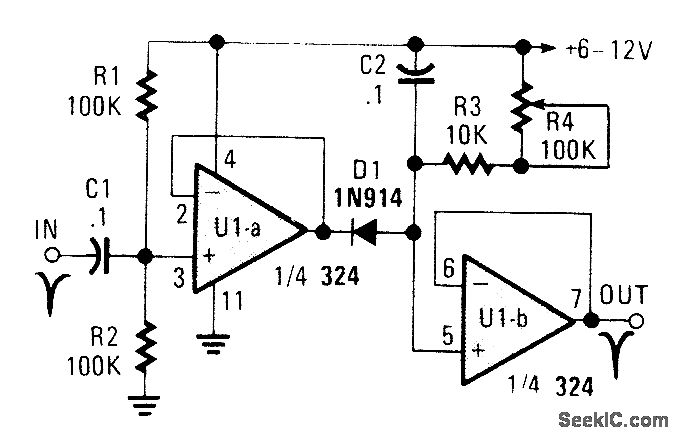

U1A acts as an amplifier, which drives D2 and charges C2. U1B acts as a voltage follower. R3 and R4 determine the amount of stretch that the input pulse receives. C2 can be charged to accommodate different pulse rates.
