Monostable_one_shot

Published:2009/7/24 5:57:00 Author:Jessie | From:SeekIC

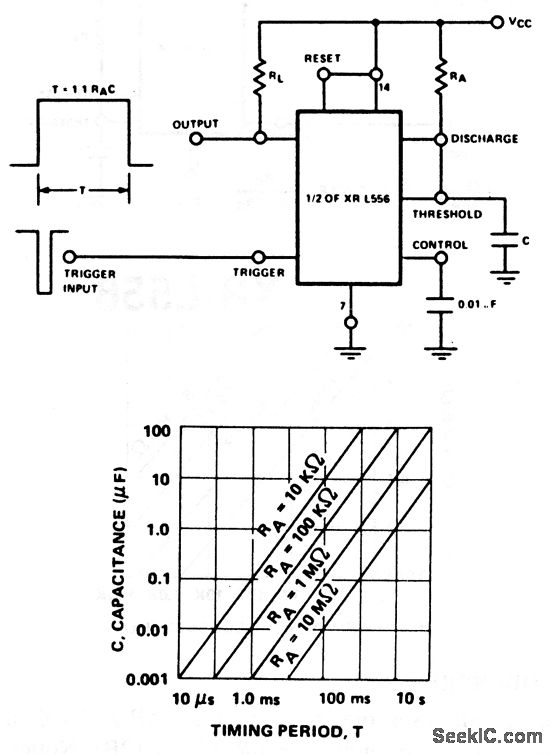

This circuit uses one section of an XR-L556 dual timer. Duration of the output pulse is set by C and RA (Fig. 5-11B). RL should equal the load being driven. EXAR Corporation Databook, 1990 , p. 5-218/5-220.
