Mini FM Transmitter

Published:2012/11/15 0:27:00 Author:muriel | Keyword: Mini , FM , Transmitter | From:SeekIC

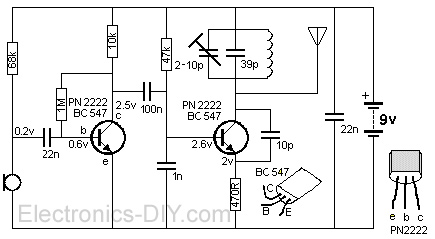

9 Volt battery operated simple Mini FM Transmitter. FM Transmitter is very simple, compact, and has transmission signal with a range of 100-150m, good sensitivity and low current consumption. Transmitter's schematic consists of a bass amplifier for the first transistor and the proper frequency generator in the second. FM Transmitter divided transitional capacitor that allows you to set up a cascade separately. Transmitter PCB shows the value of all the details and transistors! Reel contains 5 turns enameled wires 0.35mm to send a diameter of 3.2mm (rod of the handle). Setting frequency boils down to the installation shown in the pattern of voltages through appropriate resistors, and then check the current consumption � it should be about 10mA antenna � a piece of wire 40cm. Here you can see the bug assembly factory performance. FM Transmitter uses very small PCB and some SMD resistors.
