MSP3463G-audio signal processing integrated circuit

Published:2011/7/27 10:07:00 Author:Nancy | Keyword: audio signal | From:SeekIC

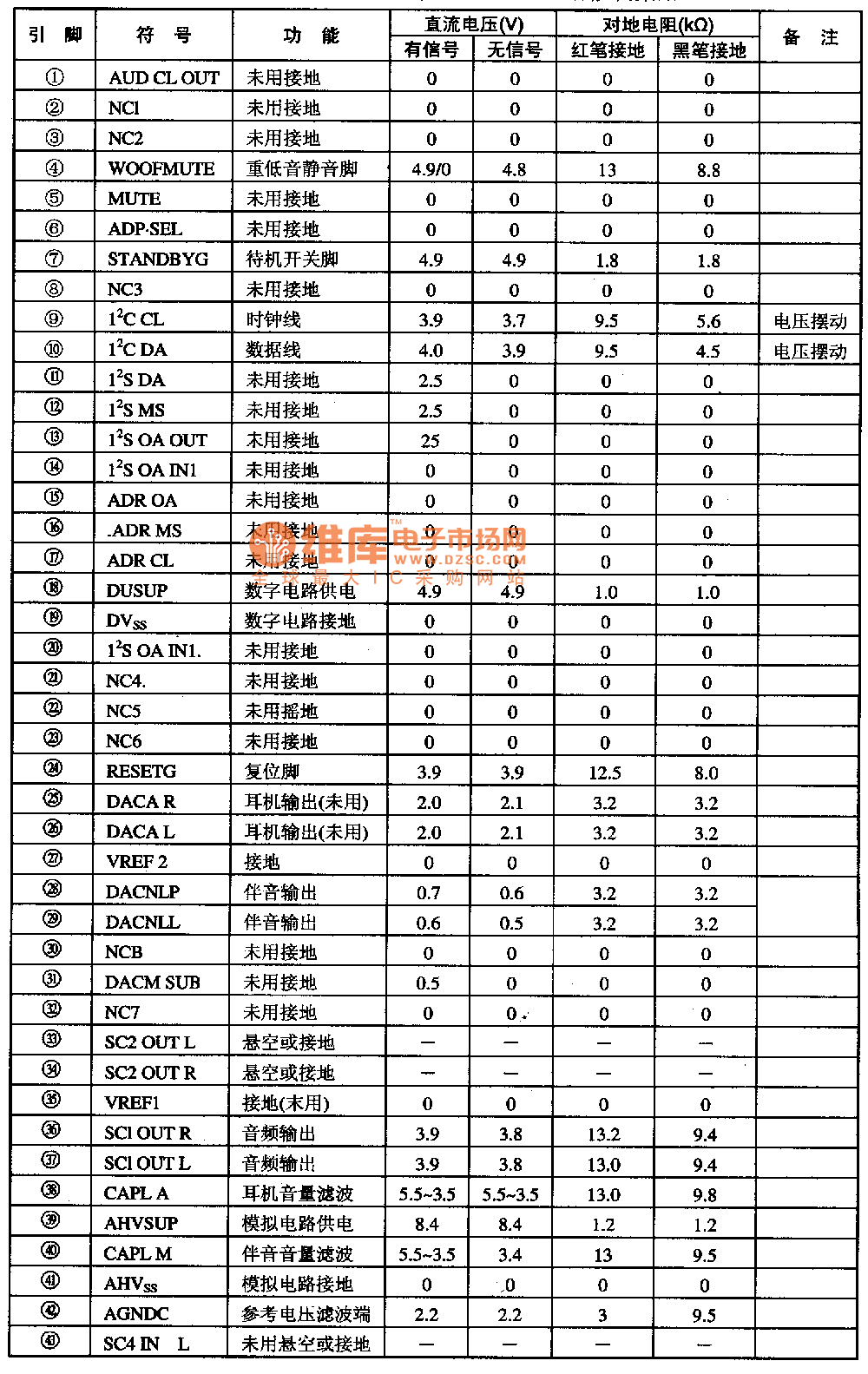

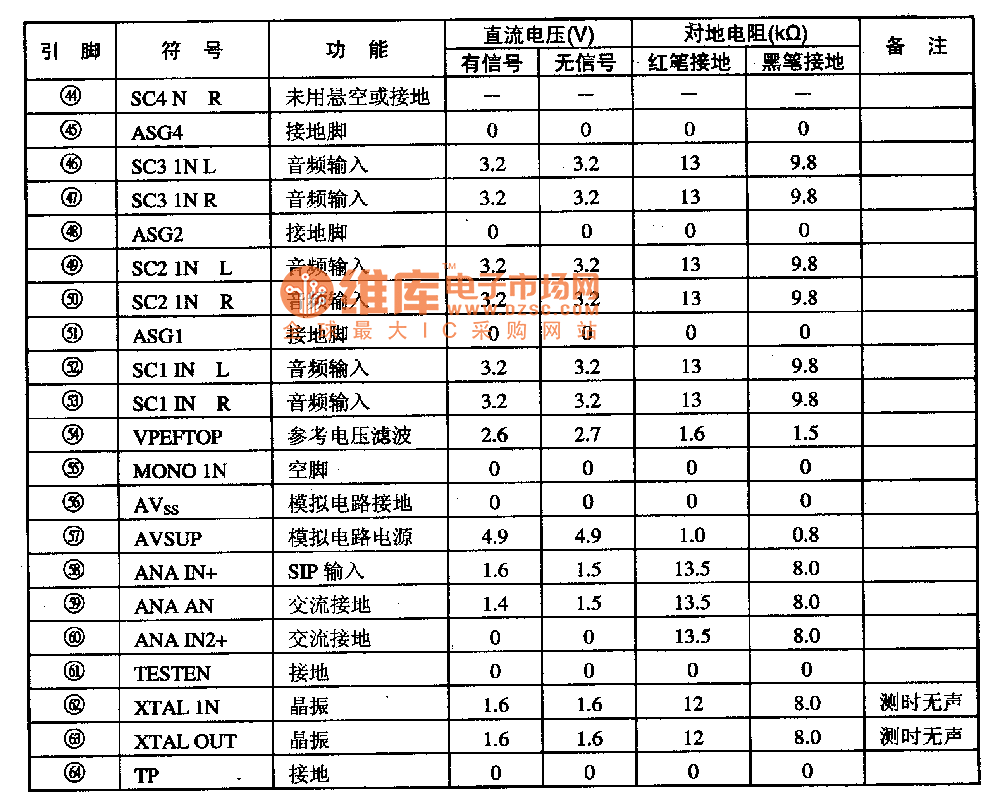

The MSP3463G is a new generation audio signal processing integrated circuit widely used in Konka S series wide screen color TV. 1.Functions and features:The MSP3463G integrated circuit contains I2C bus interface circuit, I2S bus interface circuit, earphone audio amplifier circuit, standby switching circuit, heavy bass mute circuit, and some other auxiliary function circuits. 2. Pin function and data: The MSP3463G integrated circuit adopts 64 DIP package, which is used in the Konka P2960S, P2971S mirror color TV. The pin function and data is shown as the table.
