Published:2012/11/23 0:59:00 Author:muriel | Keyword: MSF Receiver | From:SeekIC

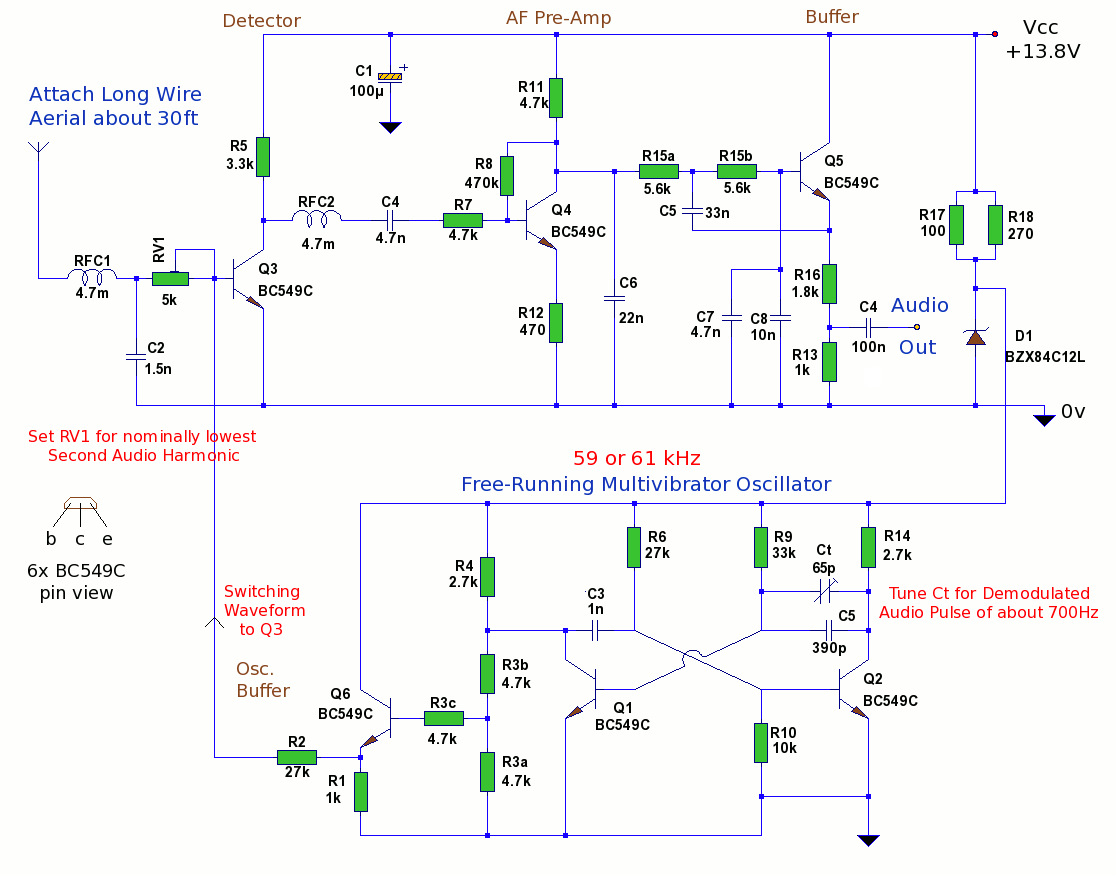

This is an experimental 60khz direct conversion receiver for reception of the UK MSF Time Signal from Anthorn, Cumbria. (The mast array can be seen on the right hand image.) For continued stability, the radio should be continuously supplied from a +13.8v bench power supply.
To achieve enough rf signal pickup, an outside long wire aerial is required, of at least 25 feet anchored to a pole. No aerial balun must be used.
