Low_frequency_sine_wave_generator_with_quadrature_output

Published:2009/7/23 22:51:00 Author:Jessie | From:SeekIC

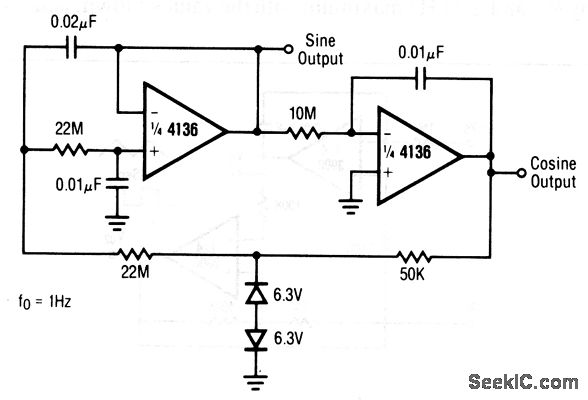

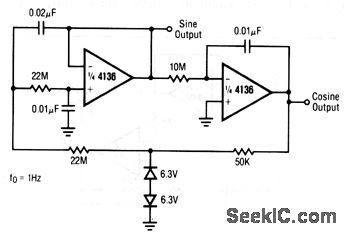

This circuit uses two sections of a 4136 op amp. The frequency of both the sine and cosine output is 1 Hz with the values shown. Raytheon Linear Integrated Circuits, 1989, p. 4-173.
