LOW_POWER_BROADCAST_BAND_TRANSMITTER

Published:2009/7/21 7:20:00 Author:Jessie | From:SeekIC

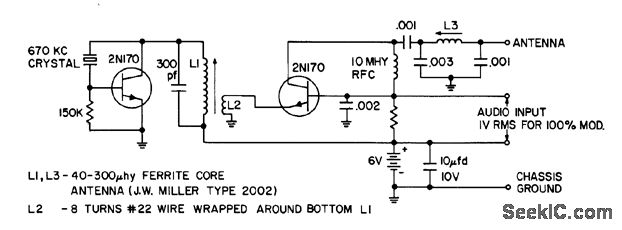

Crystal-controlled 670-kc oscillator and single-transistor amplifier stage provide 400 microwatts a-m for antenna.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 386.
