LINEAR_SAWTOOTH_WITH_SPLIT_TIMING_CAPACITOR

Published:2009/7/23 22:49:00 Author:Jessie | From:SeekIC

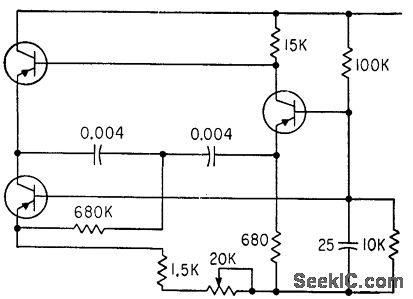

To compensate for linearity deterioration, timing capacitor of emitter-coupled mvbr is split info two equal parts, and feed, back resistor is connected between center point and emitter of constant-current generator Q3.-B. Rakovic, One More Transistor Makes c linear Sawtooth, Electronics, 35:49, p 50-51.
