LINEAR_SAWTOOTH_1

Published:2009/7/23 22:53:00 Author:Jessie | From:SeekIC

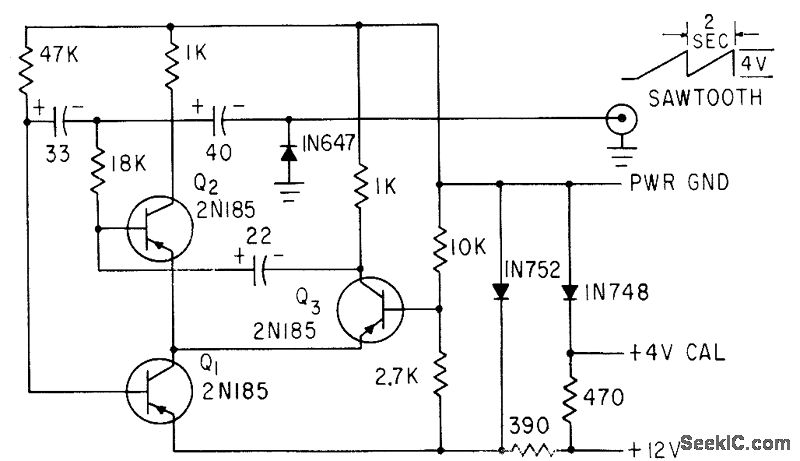

Develops signal with 4-V amplitude and 2.sec period.-O. C. Hay-cock and K. D. Baker, Measuring Antenna Impedance in 34:2, p 88-92.
