LINEAR_RAMP

Published:2009/7/23 22:48:00 Author:Jessie | From:SeekIC

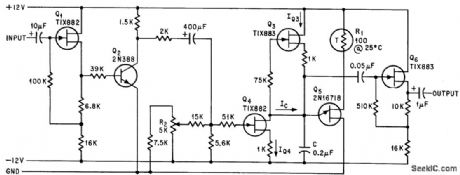

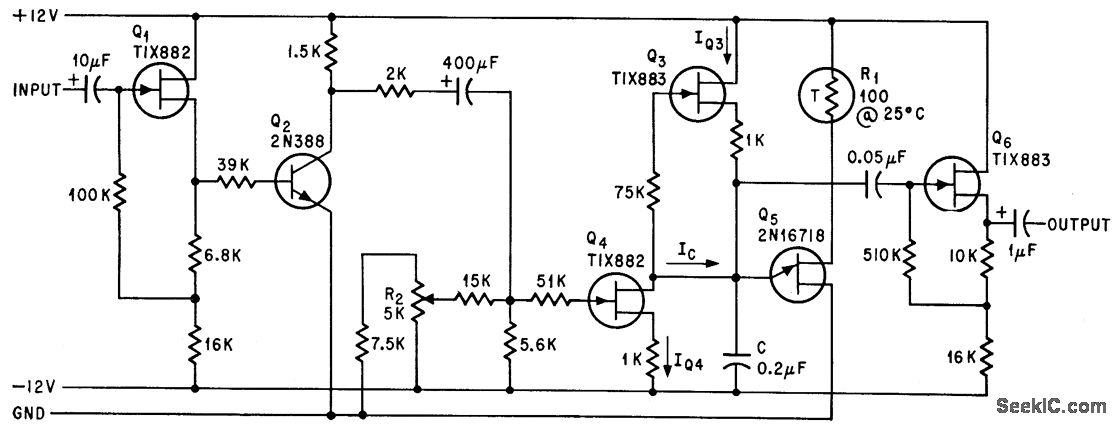

Output voltage varies linearly with frequency within 98%, while peak voltage is constant of 0.6 v. Thermistor R1 provides temperature stability and source follower Q6 reduces loading.-D. D. Brooks and C. F. Johnson, Sawtooth Generator Uses FET as Constant Current Source, Electronics, 38:18, p 87.
